Description

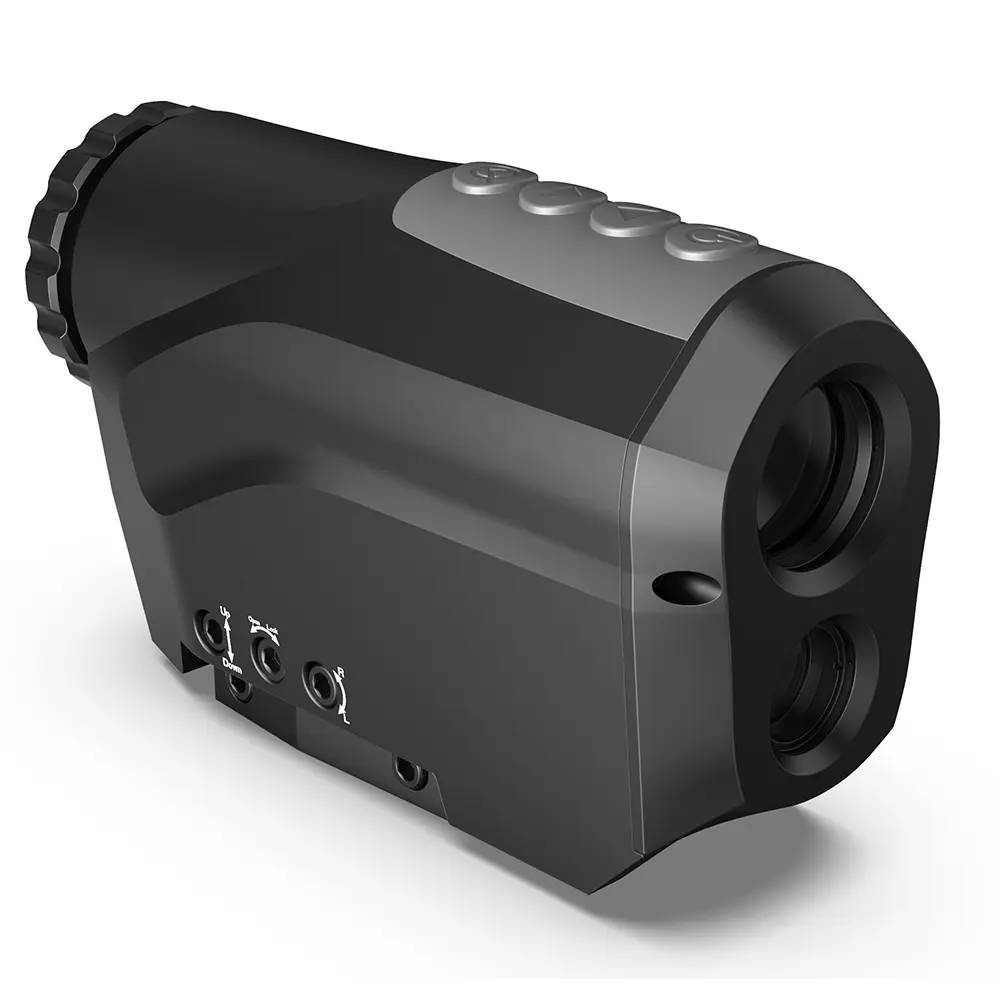

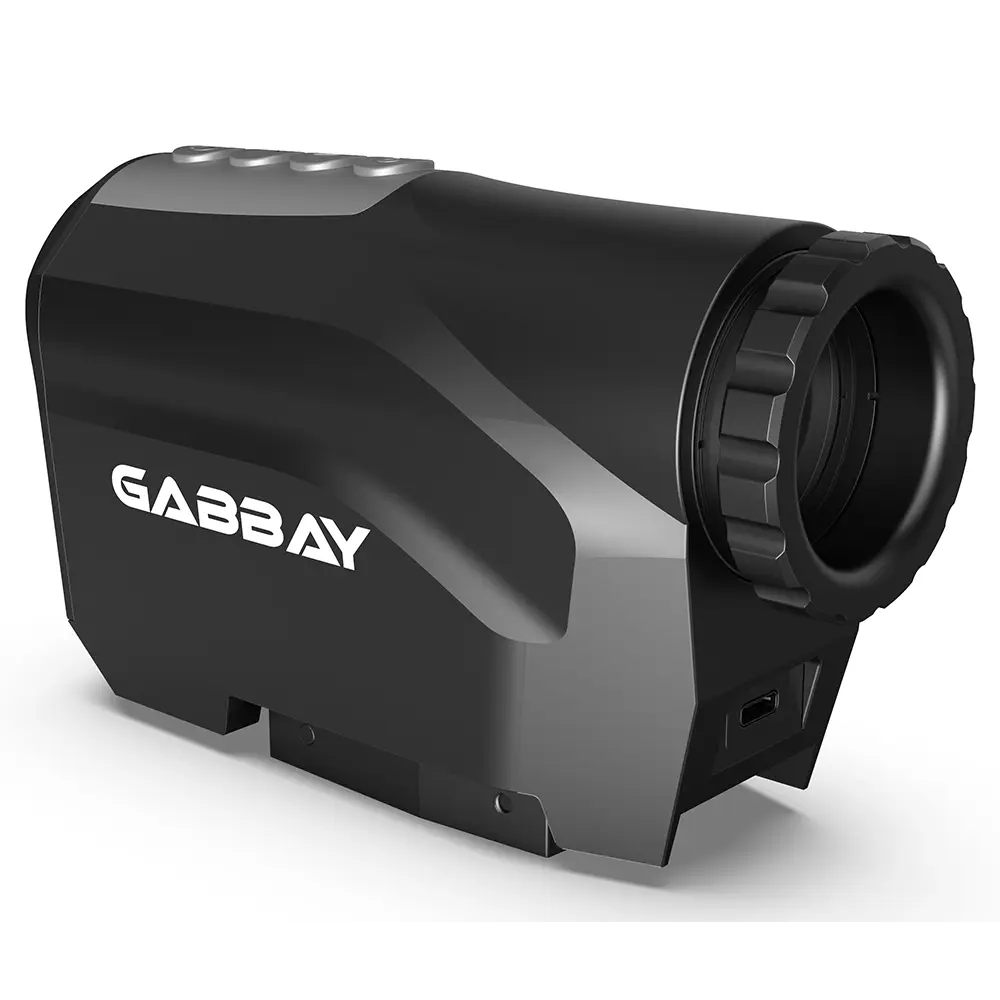

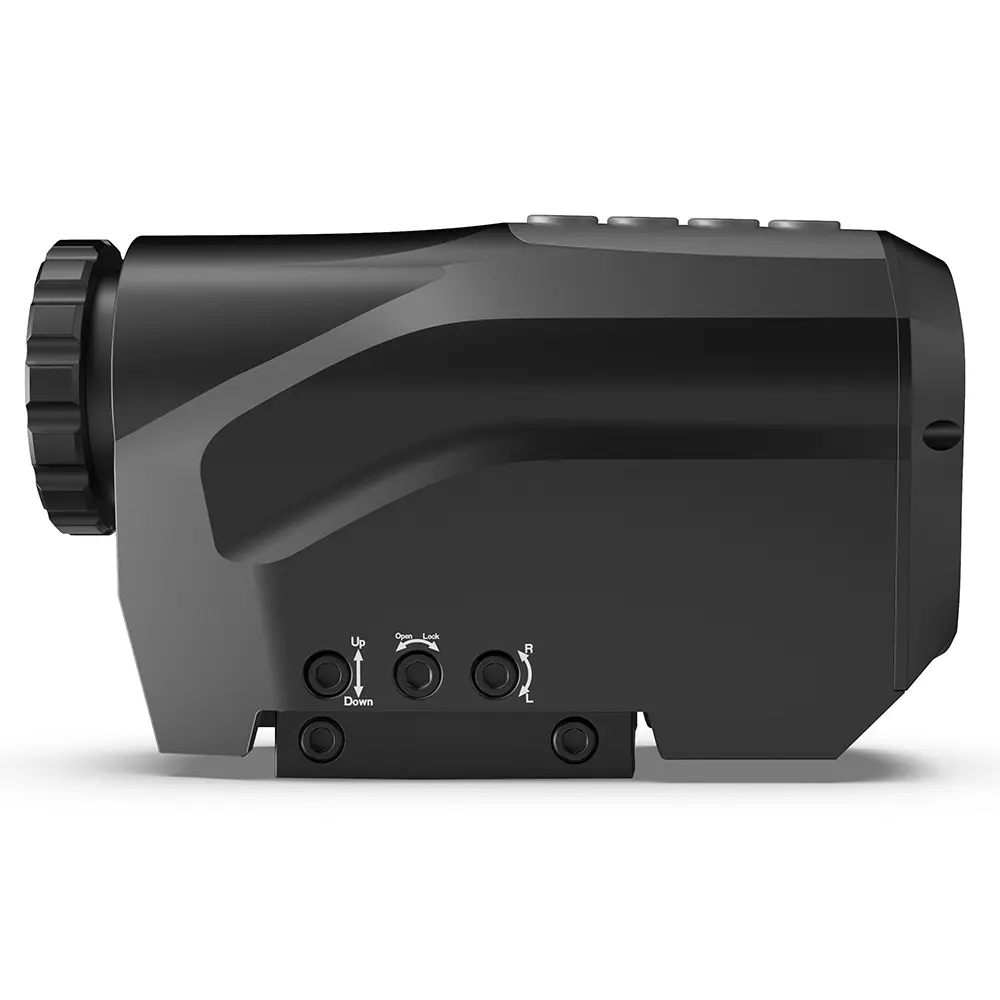

The TGR080B ranging sight is a unique product. It can not only be used normally with or without electricity, but is also equipped with a self-developed precision adjustment mechanism and prism optical system to ensure a wide field of view. It adopts a new process reticle C-LCD screen (or OLED screen optional) and a military-grade ranging system, combined with a stable mechanical structure, making this product characterized by high precision, wide adjustment range and strong durability. It performs well no matter the environment, and is lightweight and compact, giving hunters an unparalleled aiming and ranging experience.

We can customize the appearance of the color according to the customer's needs, as well as can be affixed with the customer's own brand.

Send Inquiry

Product Description

Product Overview

The TGR080B rangefinder sight is a unique product designed to function normally with or without electricity. Equipped with a self-developed precision adjustment mechanism and a prism optical system with a wide field of view, it is ideally suited for crossbows and gun equipment.

Key Features

Precision Adjustment Mechanism Equipped with a self-developed mechanism allowing users to make adjustments easily and accurately in various environments, ensuring aiming accuracy and stability.

Cutting-Edge Distance Measurement Incorporates state-of-the-art laser ranging technology for rapid and precise target distance measurements for both stationary and moving targets.

Broadened Sightline The prism system provides a broader and more comprehensive sightline, enabling shooters to observe targets across a wider expanse for enhanced situational awareness.

Dependable C-LCD Screen Design Ensures the device remains operational even without power, allowing for continued functionality in any environment and providing consistent performance.

Lightweight and Portable Compact design weighing less than 1.65 pounds, ensuring effortless portability and ease of operation for users on the move.

Tough and Weather-Resistant Constructed from aluminum alloy and premium optical glass, offering strong shock resistance and waterproof properties for harsh environments.

Simple and Straightforward Operation Features an intuitive interface and ergonomically placed buttons for immediate comprehension of features, even for first-time users.

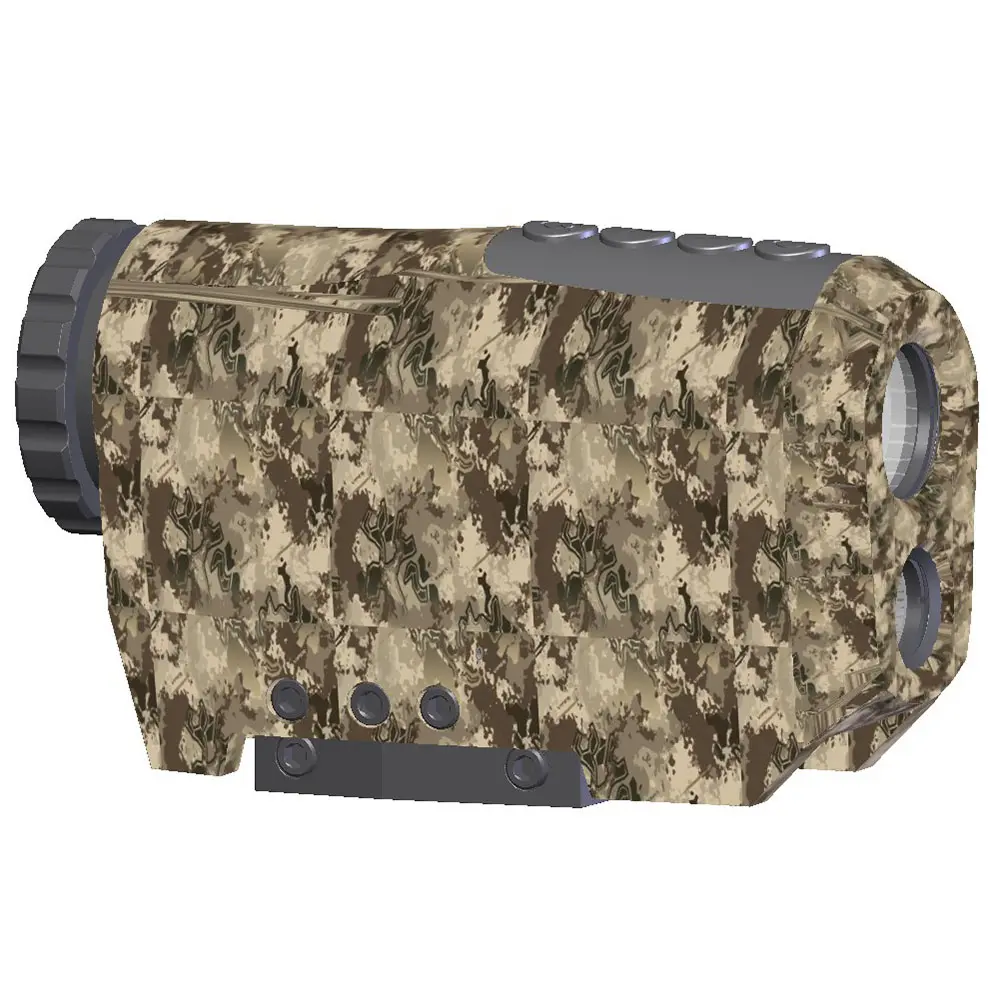

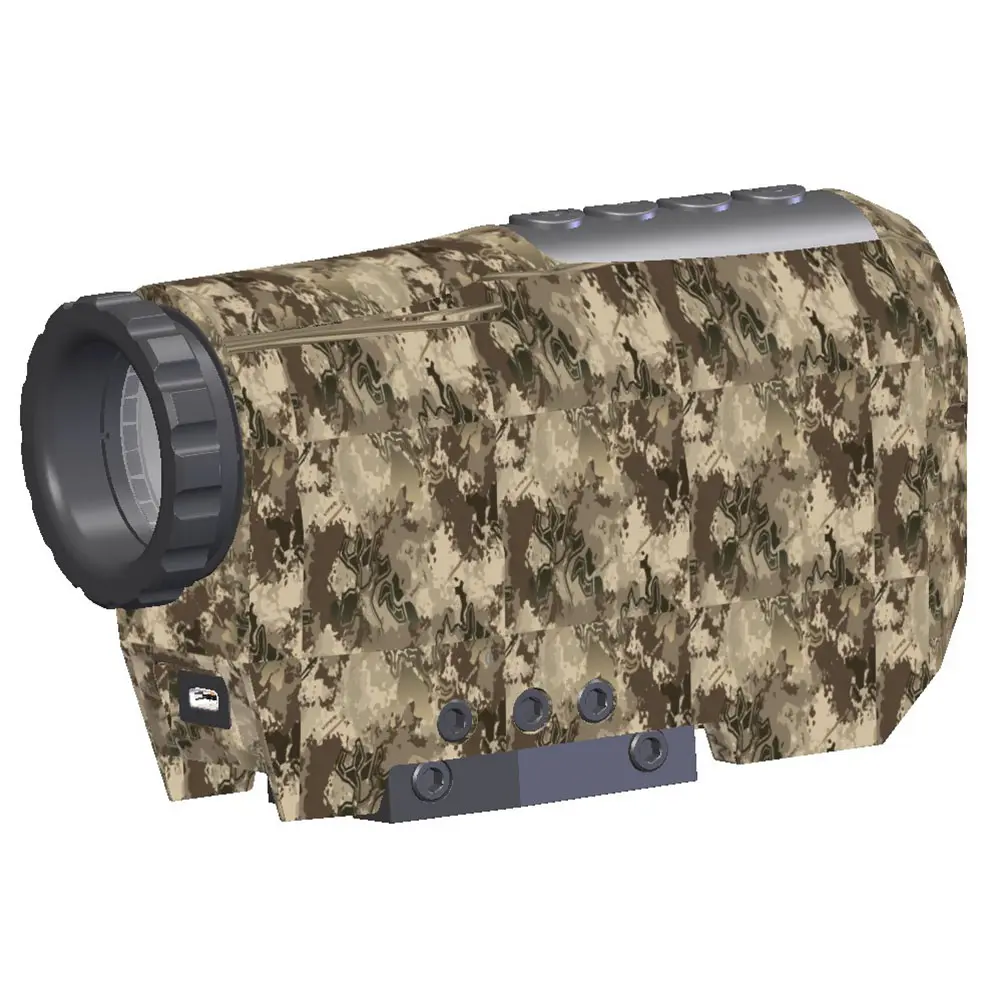

Customizable Surface Treatment The surface pattern can be customized according to specific user needs.

Areas of Application

Versatile Precision: Whether for archery, shooting, or hunting, this rangefinder scope is an ultimate companion, catering to both professional competitions and leisure activities. It ensures unprecedented accuracy and stability with every shot, enhancing the enjoyment of the activity through cutting-edge technology.

Technical Parameters

Model Number	TGR080B
Magnification	4.0x-24.0x
Objective Lens Diameter	24mm / 0.948 inch
Ocular Lens Diameter	34.8mm / 1.37 inch
Eye Relief	78mm / 3.10 inch
Exit Pupil	6.0-5.7mm / 0.236-0.213 inch
Field of View (FOV)	6.0-5.7 Degrees
Illumination	Red/Green
Battery Type	800mAh rechargeable polymer lithium battery
Compatible Devices	Crossbow
Sport	Hunting
Mounting Type	Picatinny Mount
Shockproof	Yes
Laser Model	#905
Ranging Distance	0.78”-25.00” (inch)
Dimensions (L x W x H)	5.800” x 2.155” x 3.450”
Weight	1.65 pounds
Color	Black
Shell Material	Nylon66 + GF30% + CF10%
