High-Quality Lightweight Infrared Scope Factories, Exporter

Product Profile

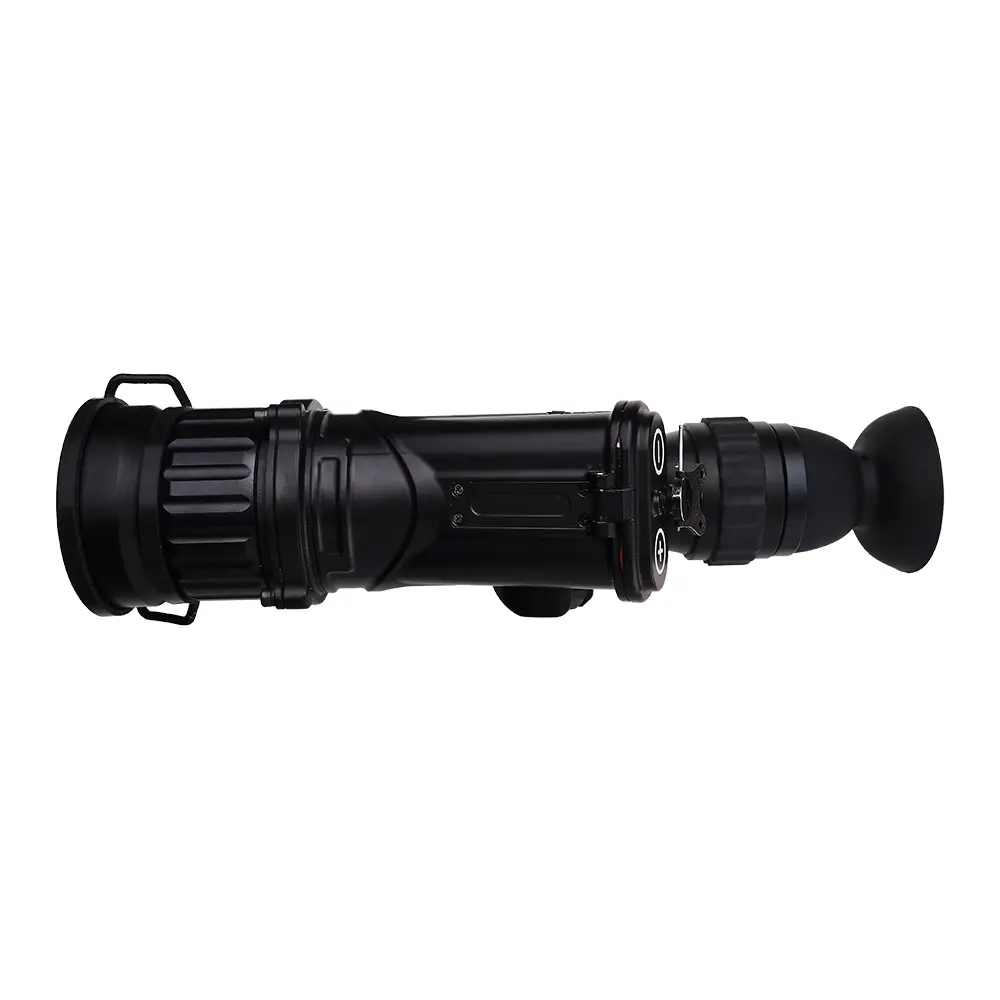

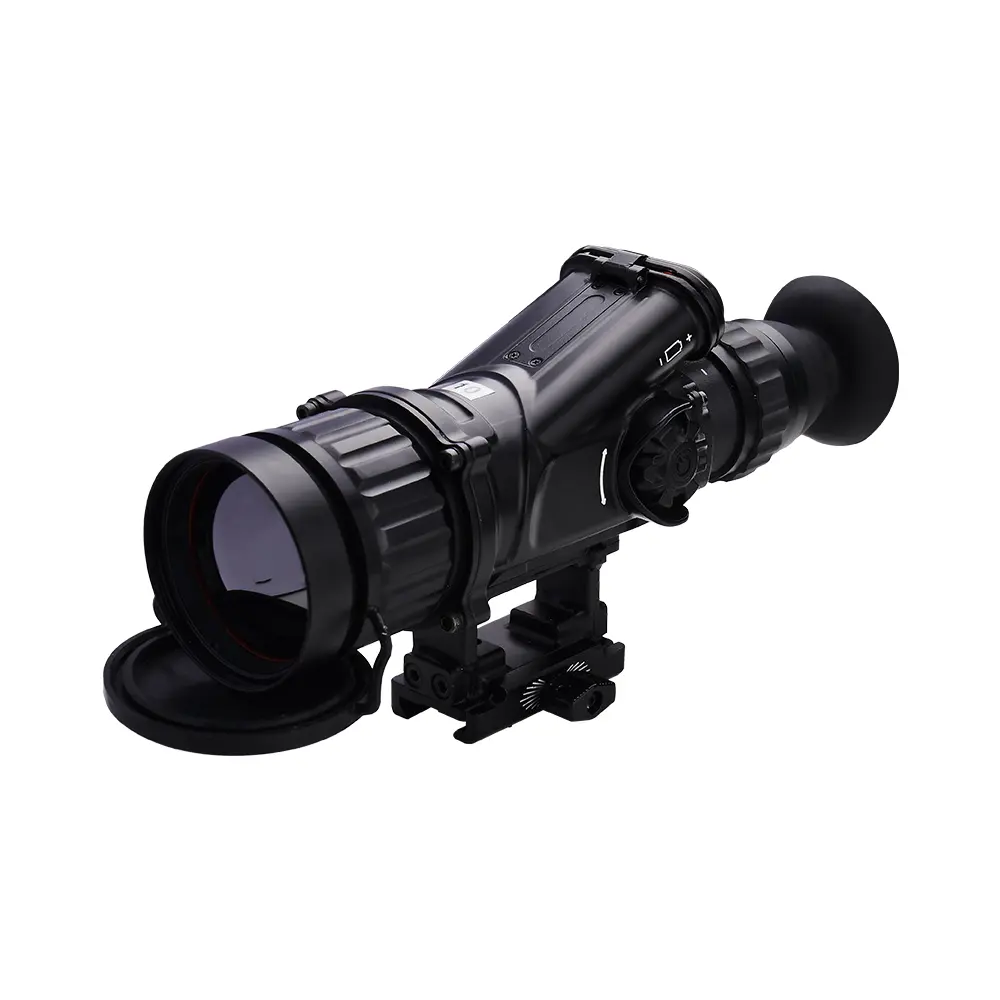

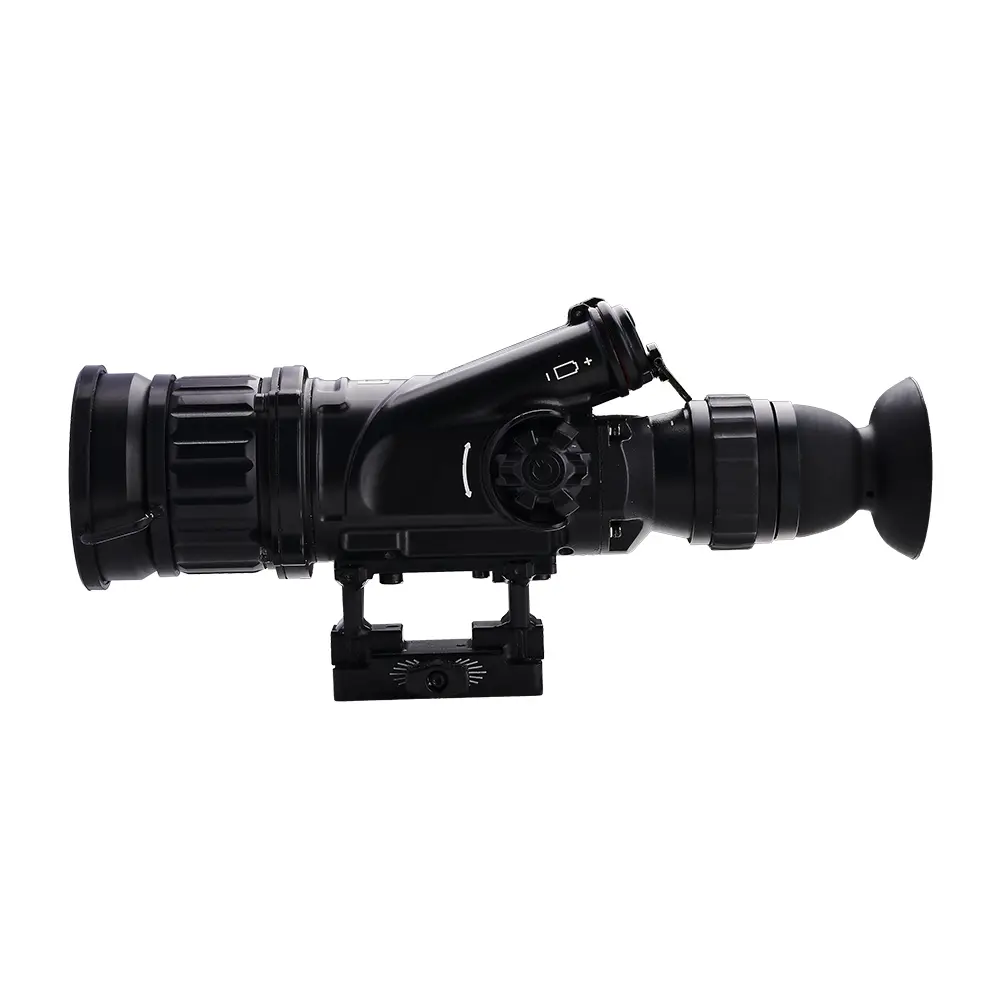

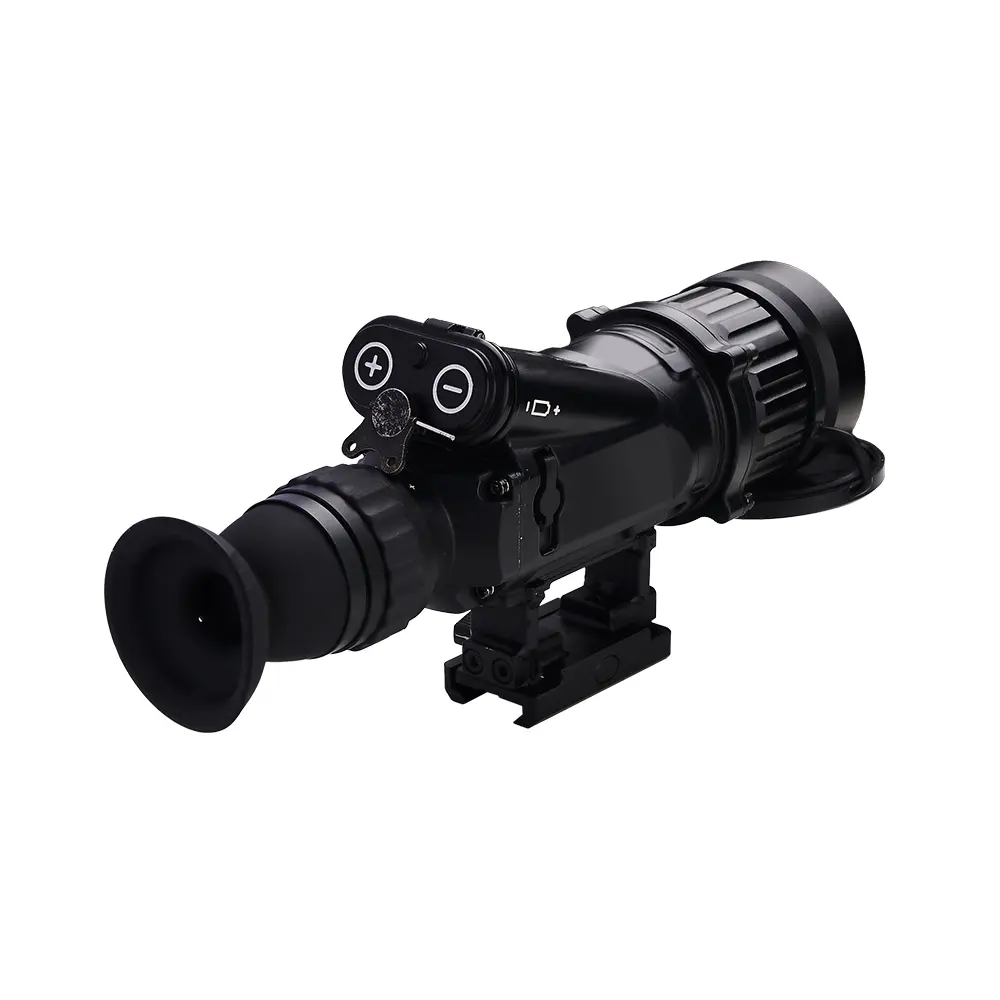

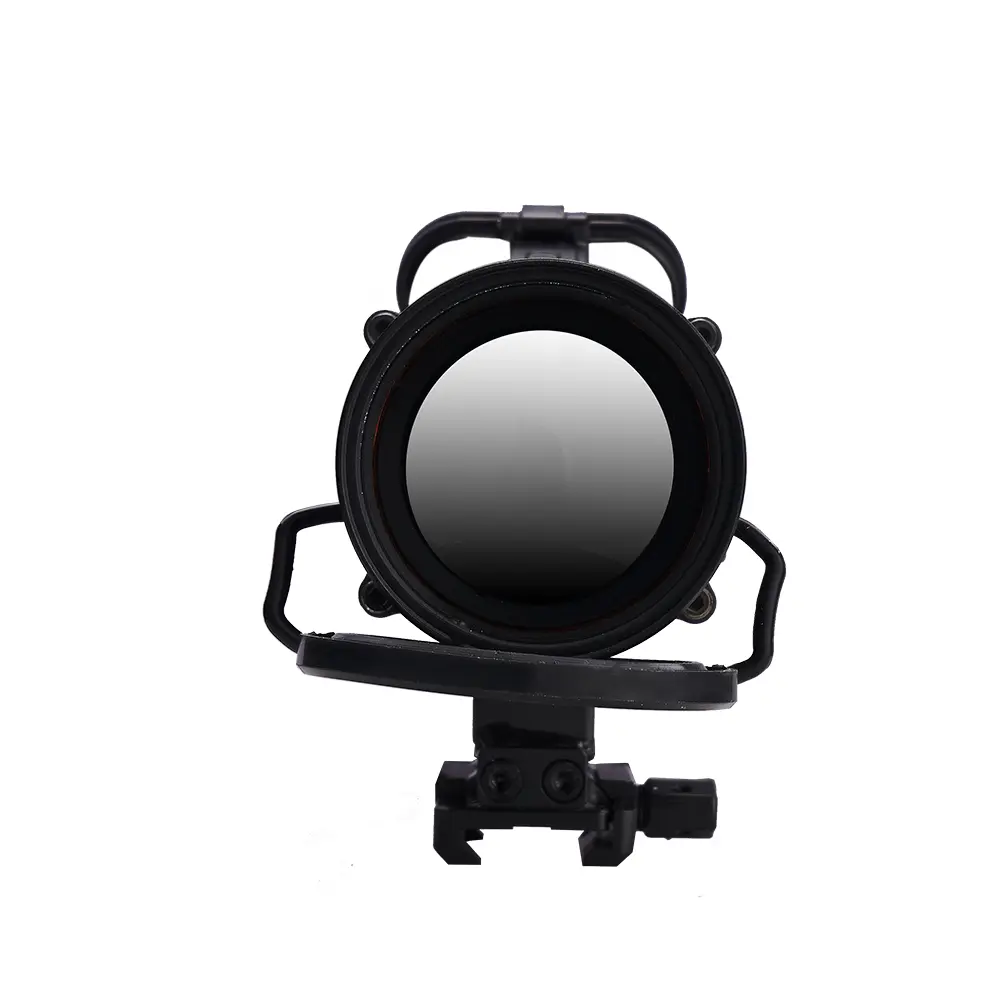

The TGR005 series lightweight infrared scope is a lightweight scope that can be used in all-weather for detecting and aiming at heat source targets. It has the advantages of small size, light weight, low power consumption, clear image, high sensitivity, high frame rate, good fit and high reliability, etc. Meanwhile, it has rich control functions, all-weather passive night vision function and strong smoke penetration performance.

Send Inquiry

Product Description

Product Features

High Quality Image Enhancement Algorithm Top-notch image enhancement algorithms including non-uniformity correction, digital noise filtering, and digital detail enhancement are utilized to deliver high-quality infrared images.

Multipolar selection We offer three polarity options - black hot, white hot, and green hot - for infrared images, allowing users to achieve the best visual experience based on their preferences.

Single Knob Control Our system features a user-friendly single knob control for quick and easy menu navigation, reducing the burden of memorization for users and ensuring excellent human-machine efficiency.

Multiple gun types and ammunition types AK, M16, G3 series gun types are available; Support for 7.62 mm, 5.8 mm, 5.56 mm, 5.45 mm ammunition types can be expanded through the host computer for gun types and ammunition types.

Vibration and impact resistance It can withstand 300G and 0.8 ms impact strength, and the life of the gun can meet more than 10,000 rounds of live ammunition.

Application field

TGR005 series infrared sight, as a aiming instrument integrating advanced infrared detection technology and high-definition image display capability, its application fields are far more than military police equipment, anti-terrorism and explosion-proof and outdoor hunting. Especially in the aspect of night observation, infrared sight plays a pivotal role.

1. Military and Police Equipment Infrared scopes have become indispensable equipment in modern warfare with their excellent night vision capability and precise target locking function. It helps personnel identify targets at night or in severe weather conditions, improving combat efficiency and survivability.

2. Anti-terrorism and Explosion-proof Infrared scopes can detect infrared radiation emitted by the human body through obstacles, helping find hidden targets. It also detects abnormal radiation emitted by explosives, providing vital information support.

3. Outdoor Hunting Traditional scopes are difficult to function in low-light environments, while infrared scopes clearly display targets, helping accurately judge distances and angles.

4. Night Observation & Rescue Useful in urban monitoring, forest fire prevention, and disaster rescue. It detects fire sources quickly and helps find trapped people, enhancing overall rescue efficiency.

Product technical parameters

Category	Parameter	Specification (Option 1)	Specification (Option 2)
Detector	Resolution	384x288	640x512
	Pixel size	17um	12um
	Band	8～14um	8～14um
Optical	MRID	≤400mk
	Focal length	40mm
	Field of view	9.32º x 7.00º	10.96º x 8.78º
	Display	Color OLED
	Visual adjustment	-5～+3 Adjustable
Power	Battery	Rechargeable Dual 18650 Lithium Battery
Power	Working time	≥ 9.0h	≥ 6.0h
Environment	Op. Temperature	-40℃～+50℃
Environment	Shock Resistance	300g, 0.8 ms (10 times)
Physical	Size	9.80“ x 2.85” x 3.50“ inch
Physical	Weight	≤ 1.75 Pound

Frequently Asked Questions

What are the available image polarity modes?

The scope supports three polarity options: white hot, black hot, and green hot, allowing users to choose based on their environment and visual preference.

How durable is the device against weapon recoil?

The device is highly durable, capable of withstanding impacts of 300G/0.8ms and a service life exceeding 10,000 rounds of live ammunition.

Which firearm types are compatible with this infrared scope?

It officially supports AK, M16, and G3 series. It also accommodates various ammunition calibers including 7.62mm, 5.8mm, 5.56mm, and 5.45mm.

What is the battery life for continuous operation?

Depending on the detector resolution, the continuous working time ranges from ≥ 6.0 hours (for 640x512) to ≥ 9.0 hours (for 384x288) using dual 18650 batteries.

Can the scope be used in extreme weather conditions?

Yes, it operates in temperatures from -40℃ to +50℃ and is designed to meet waterproof, anti-corrosion, anti-salt spray, and dust resistance requirements.

How is the menu navigation handled during operation?

The system utilizes a single knob control design for quick and intuitive menu navigation, ensuring high human-machine efficiency even in high-pressure situations.
