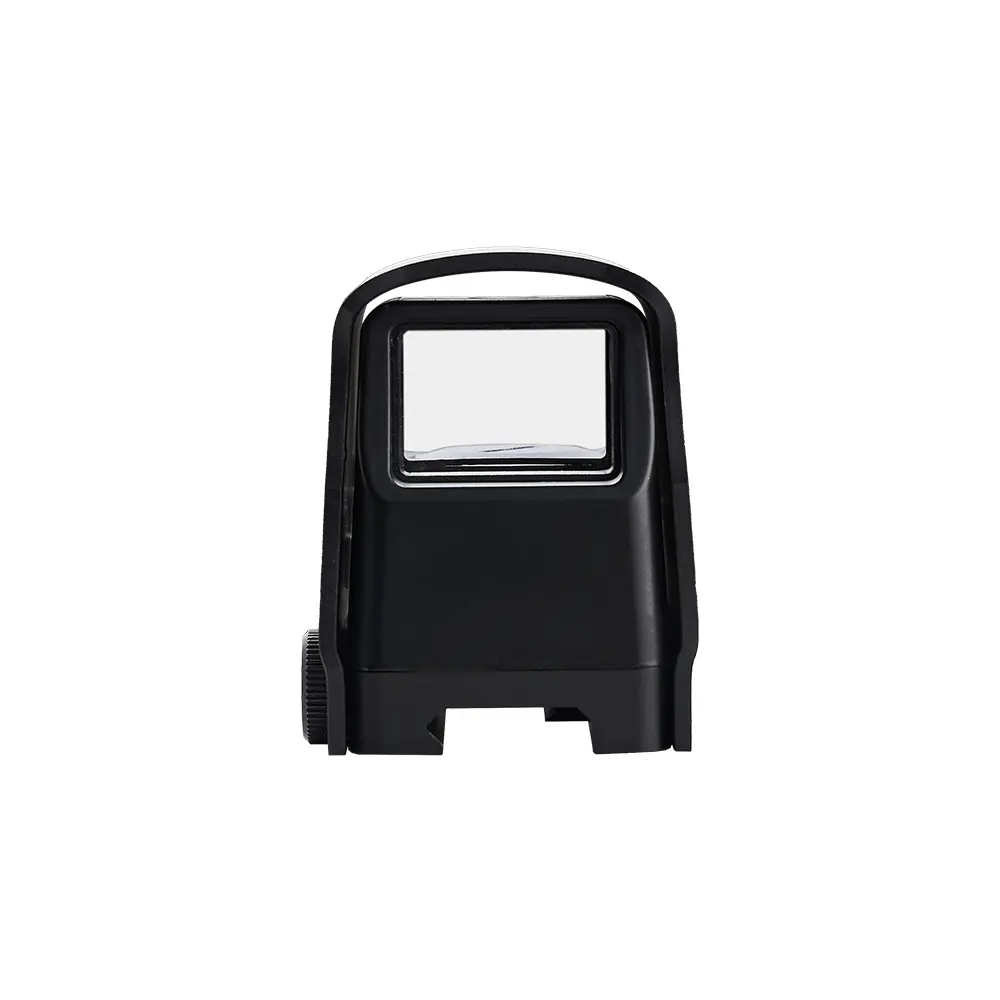

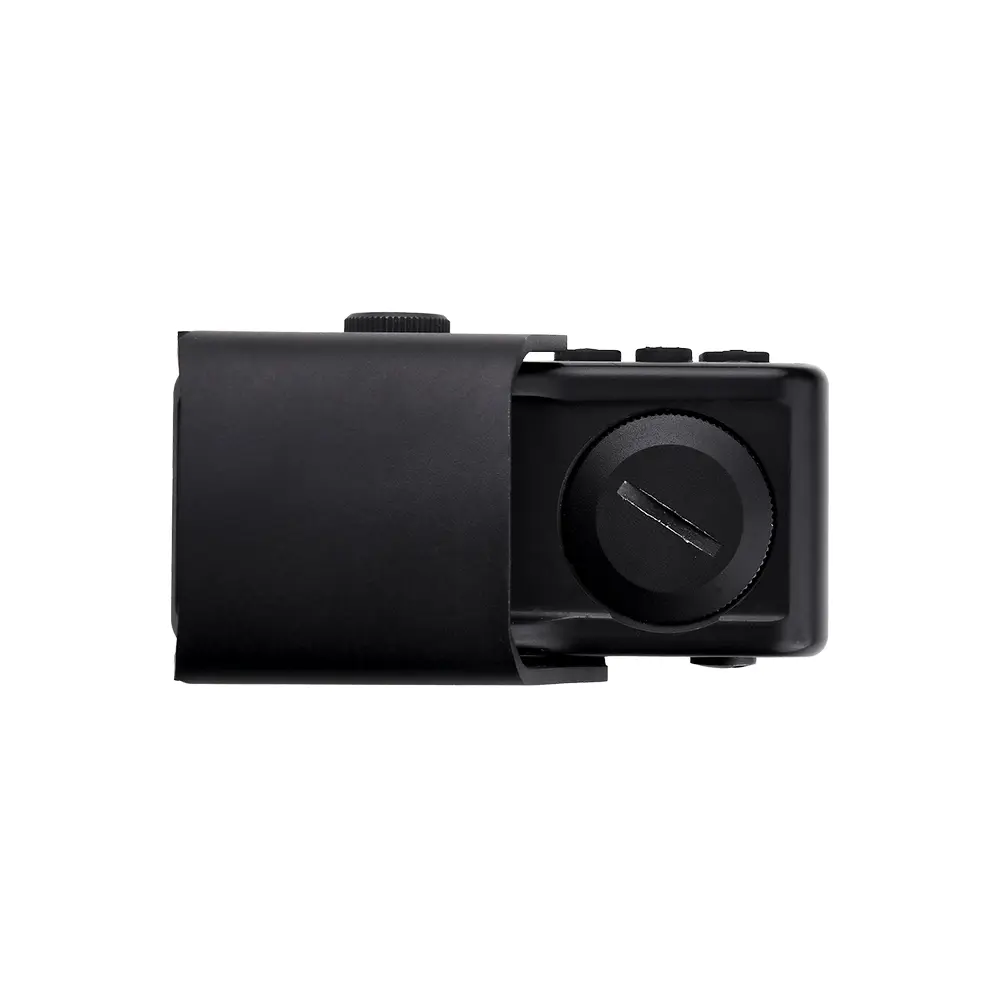

TactiGlow Open Photoelectric Sight Manufacturer, Factory

1 / 4

TactiGlow Open Photoelectric Sight Manufacturer, Factory

General

The TGR009 lightweight infrared thermal Camera is an infrared sight suitable for small weapons with Picatinny guide rails, and can also be switched via an adapter rail.

It can work normally in complete darkness, smoke, fog, rain and other harsh environment.

It can be replaced with non-rechargeable CR123A (3V) or rechargeable lithium battery 18500 (3.7V).

Send Inquiry

Product Description

Performance Description

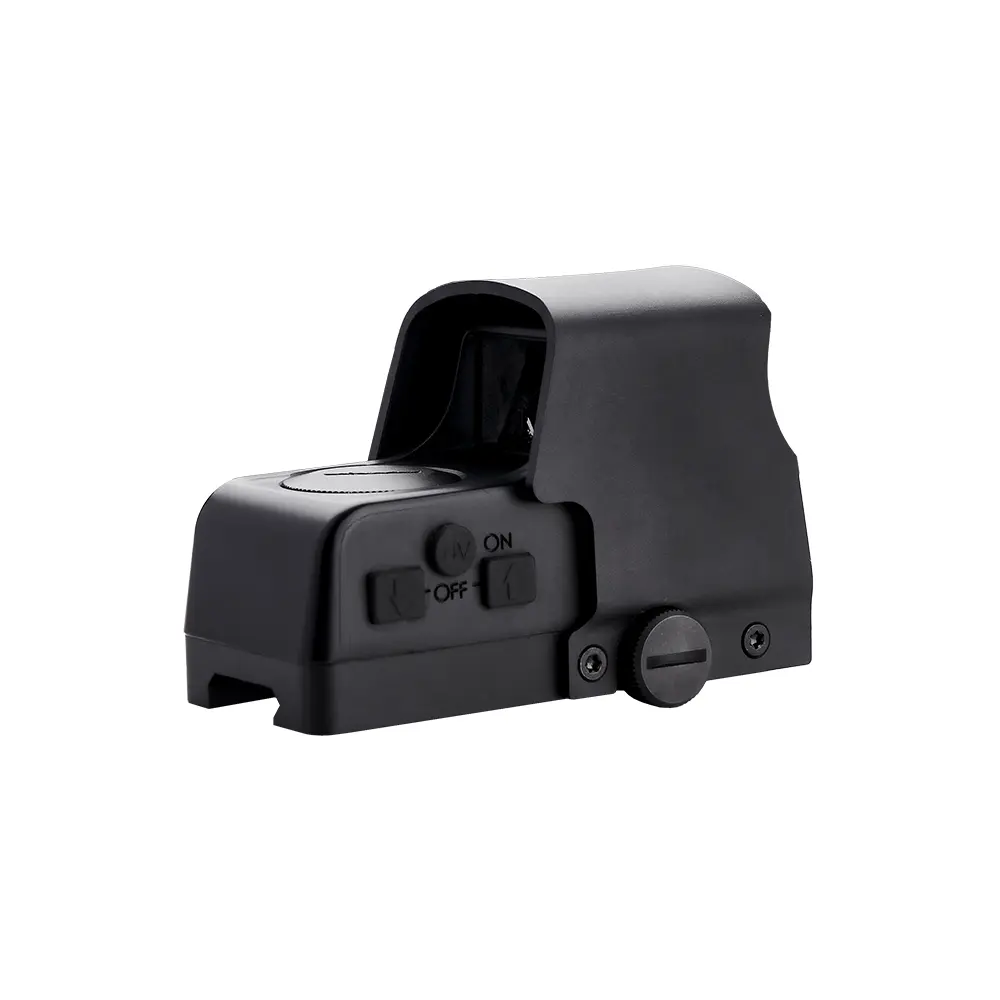

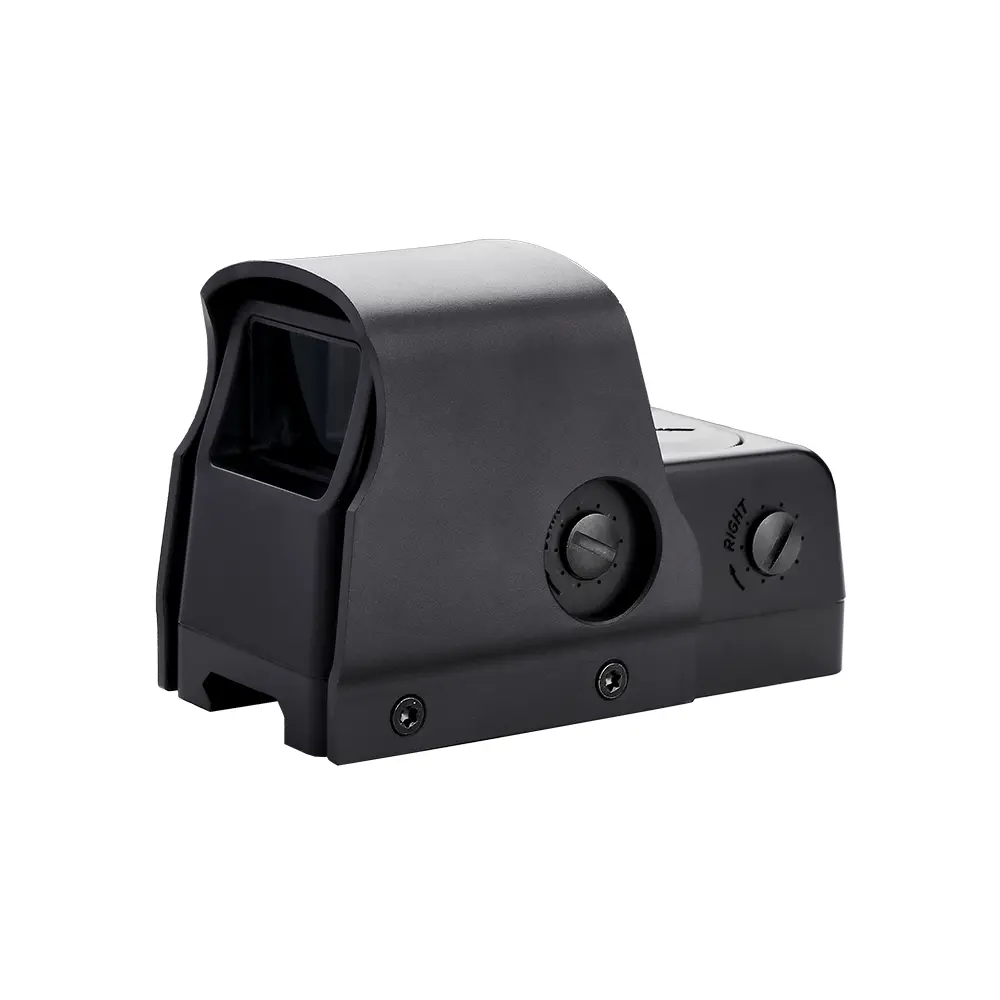

The TGR010 photoelectric rifle scope is an innovative work that combines high molecular polymer and photoelectric imaging technology. It has both day and night versatility and high aiming accuracy. Through microelectronic control, the shooter can quickly and accurately lock the target in complex light environments. The large field of view design enables the shooter to grasp the battlefield dynamics more comprehensively and improve combat efficiency while aiming.

Designed for firearms equipped with Picatinny connectors, the scope is highly compatible and easy to install. Its unique 1 MOA perspective aiming and 68 MOA bright ring aiming functions allow the shooter to accurately lock the target within a distance of about 100 meters. The design of 70 mm exit pupil distance ensures the comfort and stability of the shooter during use.

Key Features

1. Strong Concealment TGR010's enemy light leakage rate is extremely low, thanks to its unique photoelectric imaging technology and the application of polymer. On the battlefield, this greatly improves concealment and reduces the risk of discovery.

2. High Aiming Accuracy The aiming ring can swing arbitrarily from left to right without moving basically, and the parallax is extremely small (≤ 0.5MOA). This ensures stability and accuracy during quick aiming in any environment.

3. Clear View The window field of view design enables the shooter to have a clear and bright field of view. Continuous and sharp display of the aiming ring avoids secondary images and improves precision.

4. Universal Day & Night Equipped with powerful night vision functions, the TGR010 ensures clear observation and accurate targeting even in extremely weak or completely dark environments.

Application Fields

Military: Meets precise shooting needs for infantry and snipers in various combat environments, enhancing concealment during reconnaissance tasks.

Police: Reliable for anti-terrorism missions and daily patrols, allowing for quick target locking and high-accuracy engagement.

Hunting: The day and night versatility makes it ideal for hunting in bright sunlight or dim dusk, significantly improving success rates.

Technical Specifications

Magnification	1.x
Diopter	No diopter, eyes relaxed
Adjustment Accuracy	High/Low & Left/Right: 1 MOA / 1 gear
Calibration Range	High/Low & Left/Right: +/-60 MOA
Connection Interface	1.00" (25.4mm) Picatinny rail interface
Operating Procedure	Day: Red ring (10 levels); Night: White ring (5 levels); NV key for switching
Battery Life	Average continuous working time: 400 hours
Waterproof Level	IPX7
Shockproof Level	1200g impact, center deviation ≤ 1 MOA
Anti-fog Standard	Level 1 (JBT9384.2-1999)
Working Temp	-42°C to +55°C
Transmittance	White light transmittance: 80%
Light Leakage Rate	≤ 0.2%
Parallax	≤ 0.5 MOA
Physical Profile	Color: Matte Black; Weight: 0.55 Pound
Size	3.80" x 2.00" x 2.60" inch

Frequently Asked Questions

Is the TGR010 suitable for night operations?

Yes, it features a powerful photoelectric imaging night vision mode with adjustable brightness levels specifically for low-light or dark environments.

What type of mounting system does it use?

The scope is designed for a standard 1.00" (25.4mm) Picatinny rail interface, making it compatible with a wide range of firearms.

How long does the battery last under continuous use?

The average continuous working time for the battery is approximately 400 hours.

Can it withstand heavy recoil?

Yes, it has a shockproof level of 1200g impact with a center deviation of less than or equal to 1 MOA.

Is the scope waterproof and fog-proof?

Absolutely. It carries an IPX7 waterproof rating and meets Level 1 anti-fog standards (JBT9384.2-1999).

What is the parallax of this sight?

The TGR010 offers extremely high precision with a parallax of ≤ 0.5 MOA, ensuring accuracy for quick targeting.
