General


The TGR009 lightweight infrared thermal Camera is an infrared sight suitable for small weapons with Picatinny guide rails, and can also be switched via an adapter rail.

It can work normally in complete darkness, smoke, fog, rain and other harsh environment.

It can be replaced with non-rechargeable CR123A (3V) or rechargeable lithium battery 18500 (3.7V).

Send Inquiry

Product Description

Performance Description

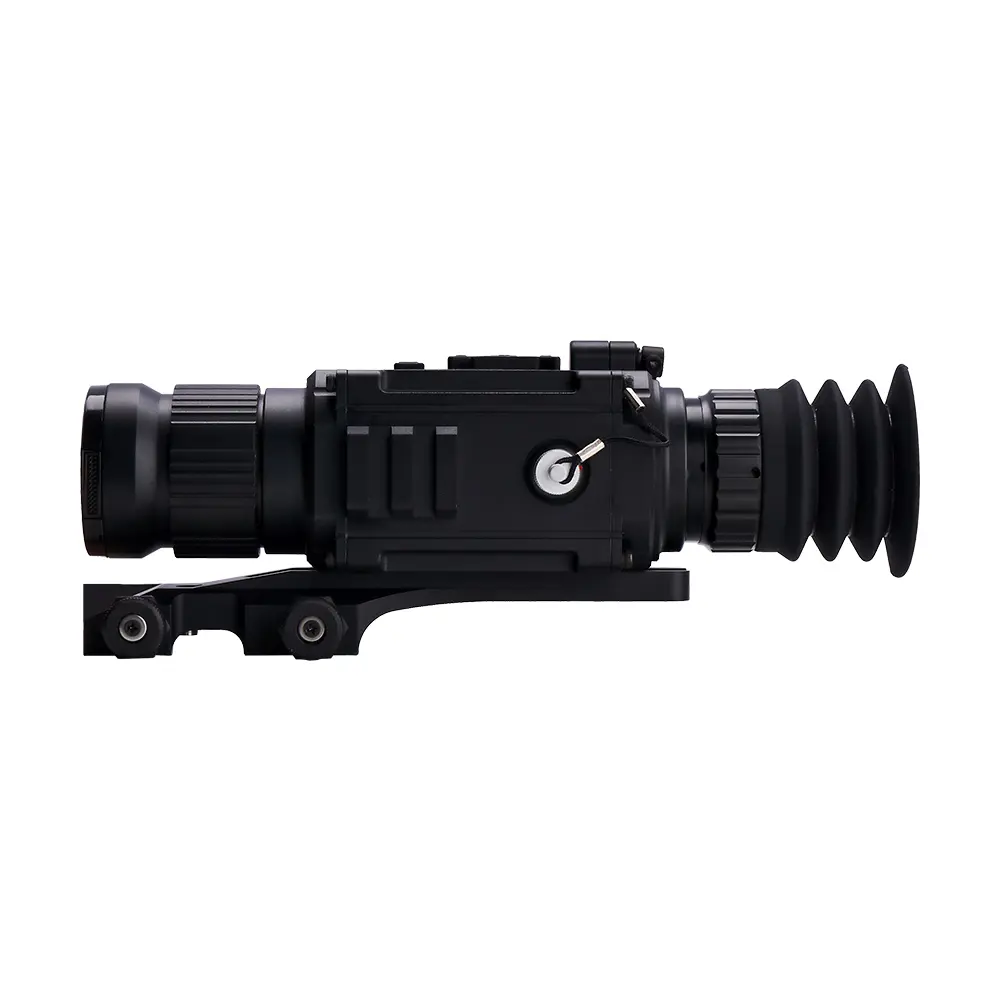

The TGR009 infrared thermal camera consists of two main parts: thermal camera and fixture. The fixture is fixed on the weapon.

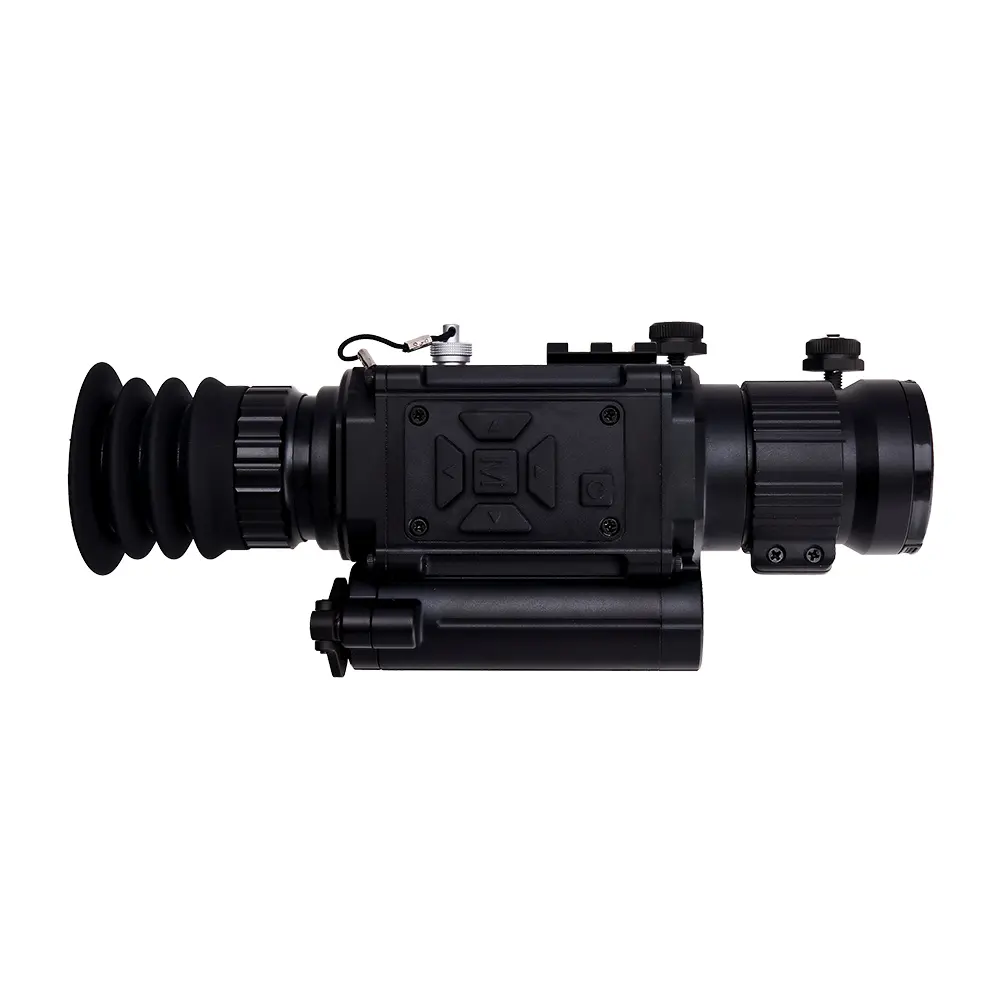

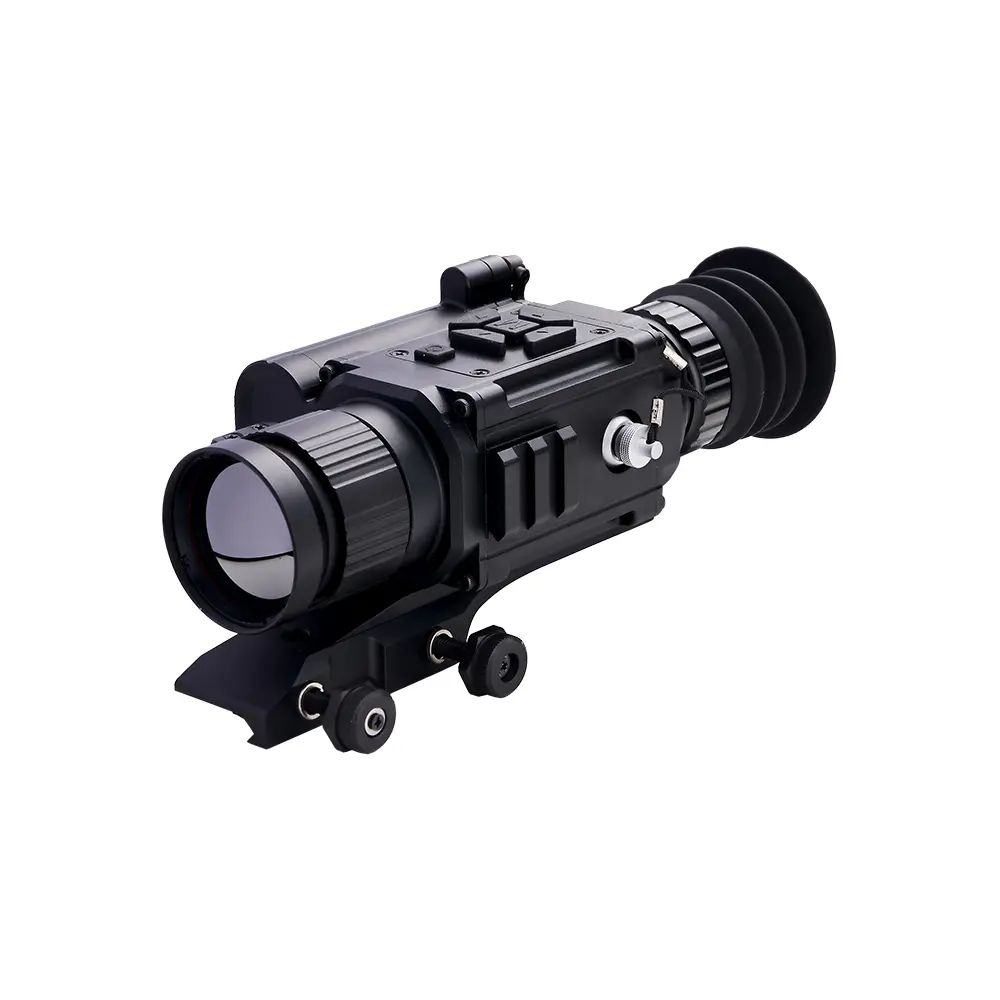

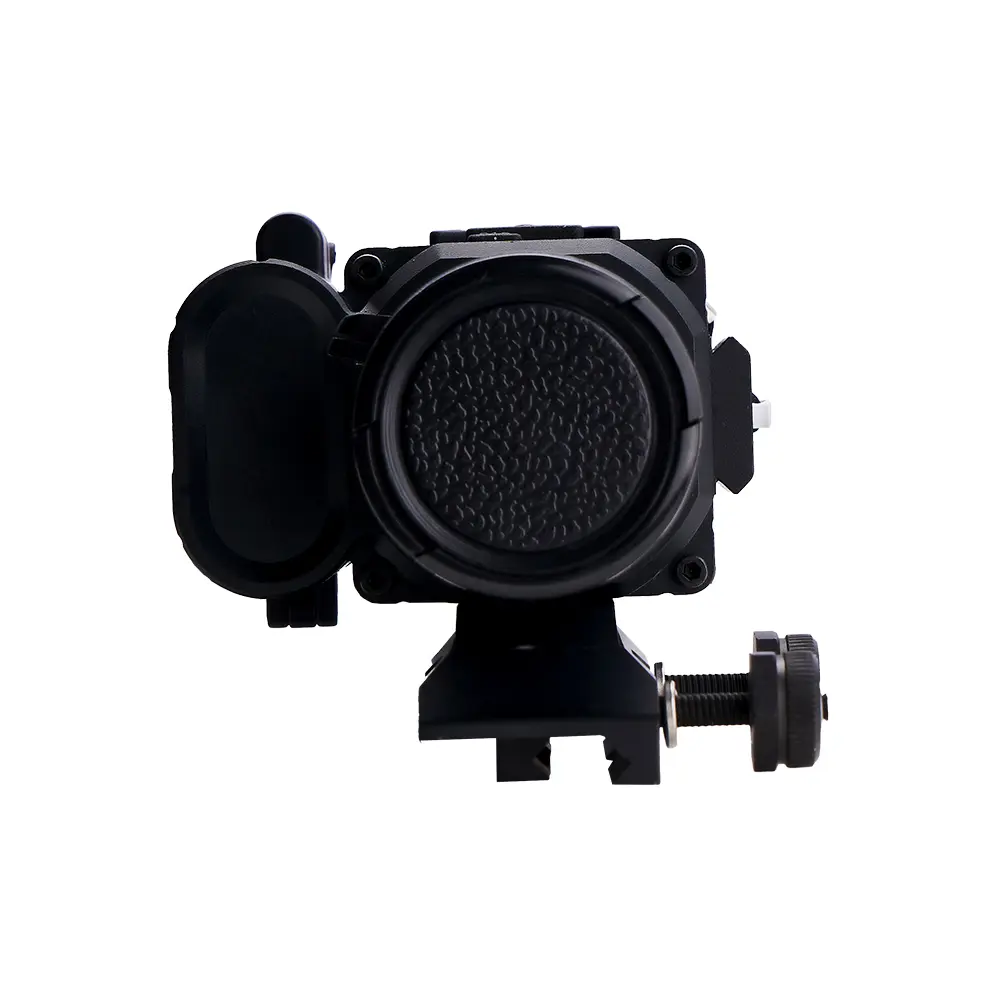

Thermal Camera Detail 1

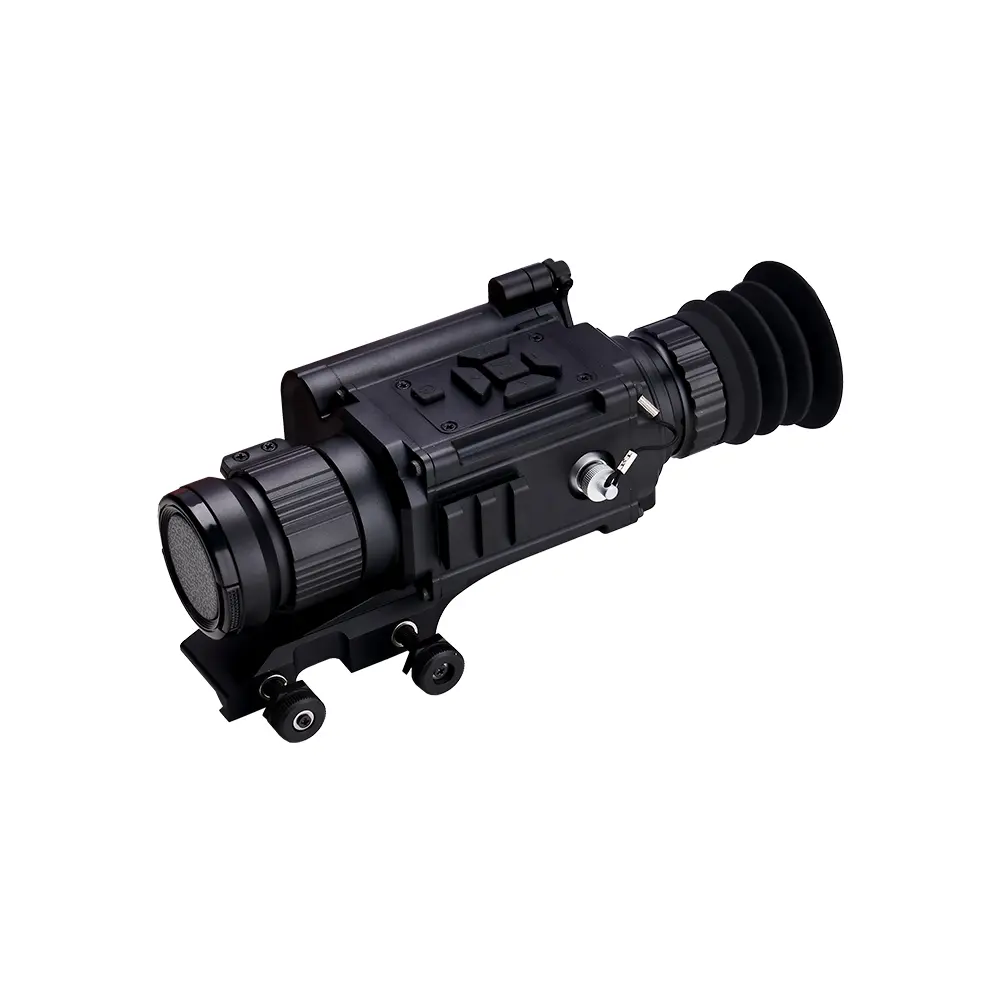

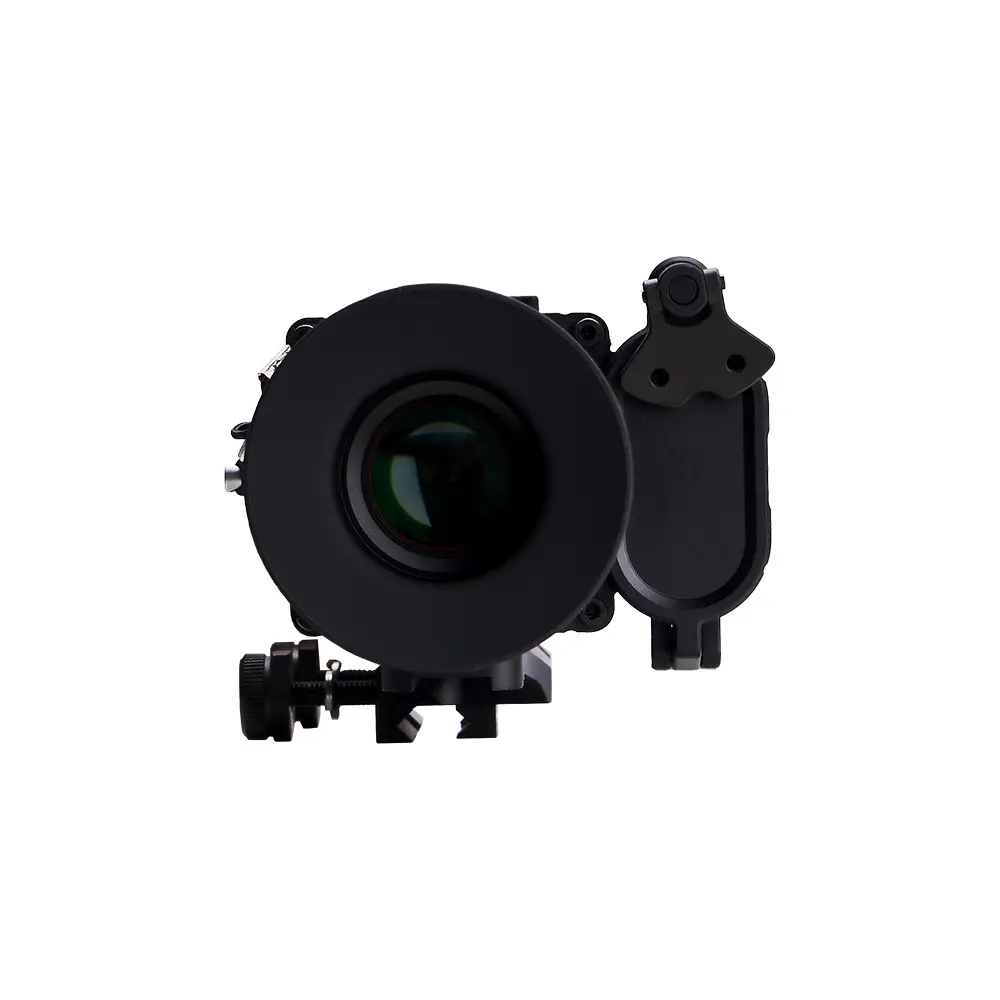

Thermal Camera Detail 2
The TGR009 is a thermal imaging device equipped with aiming reticle. It senses the temperature difference of objects in the field of vision, and converts the received temperature difference into a visible black-and-white or pseudo-color image. The larger the difference between the target and the background temperature, the more obvious the image users can see.
The main components include Germanium objective lens, long eyepiece, thermal imaging module, OLED display, main board integrated circuit (including power management system circuit) and key control panel. The reticle is displayed as electronic images.
Multi-scene mode selection
Digital zoom
Reticle color selection
Partition type selection
Internal/external correction
Diopter adjustment
Customize the Settings
Performance Specification
Overall Parameter
Optical Magnification 3×
Len Material Germanium
Frame Frequency 50hz
Detector Resolution 640×512
Pixel Pitch 12μm
Display AMOLED SVGA 050
Display Resolution 800×600
Set-up Time 3s
Digital Magnification 2×, 4×
Image Polarity Black heat/white heat/rainbow/iron red/sky, etc
Reticle Pattern Standard precision division, simple cross division, approximate distance division, custom compensation meter division.
Reticle Colour Dark/White/Green/Red
Optical Parameter
Focal Length 35mm
F# F1.0
FOV(H°x V°) 18°×14°
Focusing Manual
Focusing Range 1m~∞
Exit Pupil Diameter 8mm
Exit Pupil Distance 40mm
Diopter Adjustment Range ±5
Electrical Parameter
Battery 4×CR123A / 4×16340
Utility Time（25℃） 5.5h
External Power Supply 5V DC/1000ma
Physical Parameter
Connection Mode Picatinny Rail MIL-STD-1913 and Dovetail leather rail
Dimension (excl. eyepiece cover) 7.05“（L）× 2.25“（W）× 2.21”（H）inch
Weight (excl. battery/fixture) 1.10 pt
Environmental Parameter
Operating Temperature -40℃~55℃
Storage Temperature -40℃~60℃
Shock Request Meet MIL-STD-810G（GJB150A）standard
Encapsulation Level IP66 Waterproof and Dustproof
Frequently Asked Questions
What is the detector resolution of the TGR009?
The TGR009 features a high-performance detector resolution of 640×512 with a 12μm pixel pitch.
How long does it take for the device to start up?
The system is designed for rapid response, with a quick set-up time of approximately 3 seconds.
What type of batteries does this thermal camera use?
The device is powered by 4×CR123A or 4×16340 batteries, providing up to 5.5 hours of utility time at 25℃.
Is the TGR009 suitable for harsh environments?
Yes, it has an IP66 encapsulation level for waterproof and dustproof protection, and operates in temperatures ranging from -40℃ to 55℃.
Can I customize the reticle display?
Yes, users can select from multiple reticle patterns (standard, cross, distance) and choose between Dark, White, Green, or Red colors.
What mounting options are available?
The camera supports Picatinny Rail MIL-STD-1913 and Dovetail leather rail connections via replacement fixtures.
